Building the Schema and Selecting Fields
Learn how to select content models and fields when building your instance's schema.
Building your instance's schema is the first step to getting started with your new instance. Building your instance's schema means that we'll be creating content models and adding fields to those content models. There are 3 types of content models:
- 1.Single Page (e.g. about us page)
- 2.Multi-page sets (e.g. blog articles)
- 3.Headless sets (e.g. blog tags)
After we create content models, we'll add fields to them. Fields allow users to enter their content.
The Schema section's home screen has a step-by-step guide to help you choose the right content model for your needs. After the content model type is selected, you'll name it, then select a parent if necessary, and create it.

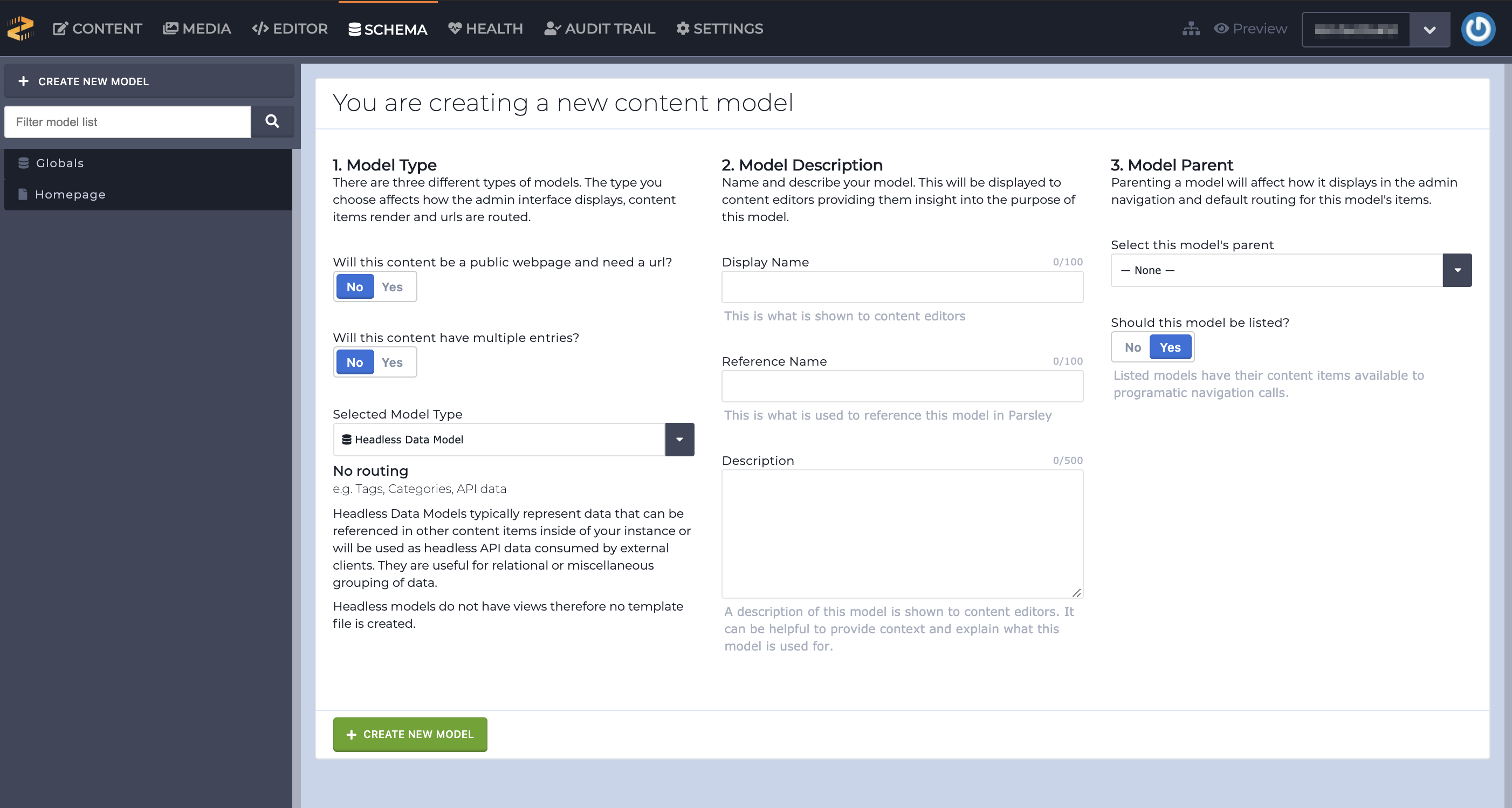

Schema section home screen.
Creating a content model step 1: select a model type.
Use the toggles to answer the prompts and the content model type will be automatically selected based on your answers. If you already know what you need go ahead and select your content model type from the dropdown.
Creating a content model step 2: give it a name.
Fill out the Display Name textbox and the Reference Name will auto-populate. The Display Name is used to identify the model in the Content section. The Reference Name is used to identify the model in the Editor section. The Description is optional. The model's Display Name, Reference Name, and Description can all be edited after it's been created.
Creating a content model step 3: select a parent
Selecting a parent for your model will affect how it displays in Content section and will create default paths for its routing. For example if you have a set called Articles and you select a page called Blog Page as its parent, the URL path for the articles will be:
/blog-page/article-name. The model's parent can be edited after it's been created.
Creating a content model step 4: create the model
Click the green Create New Model button to create your model.
Fields are added to a content model after it's been created. Fields allow users to enter their content.
Content Model without any fields.
Add a field step 1: Click the dropdown for a list of field types.
Add a field step 2: select a field type
Select a field from the dropdown by hovering over it and clicking it.
Fill out your field's attributes:
- 1.Field Label
- 2.Field Name
- 3.Is this field required?*
- 4.Show this value in the table listing view?**
- 5.Tool Tip and Description** denotes optional attributes.
** denotes an optional attribute that apply to Multi-page and Headless sets only.

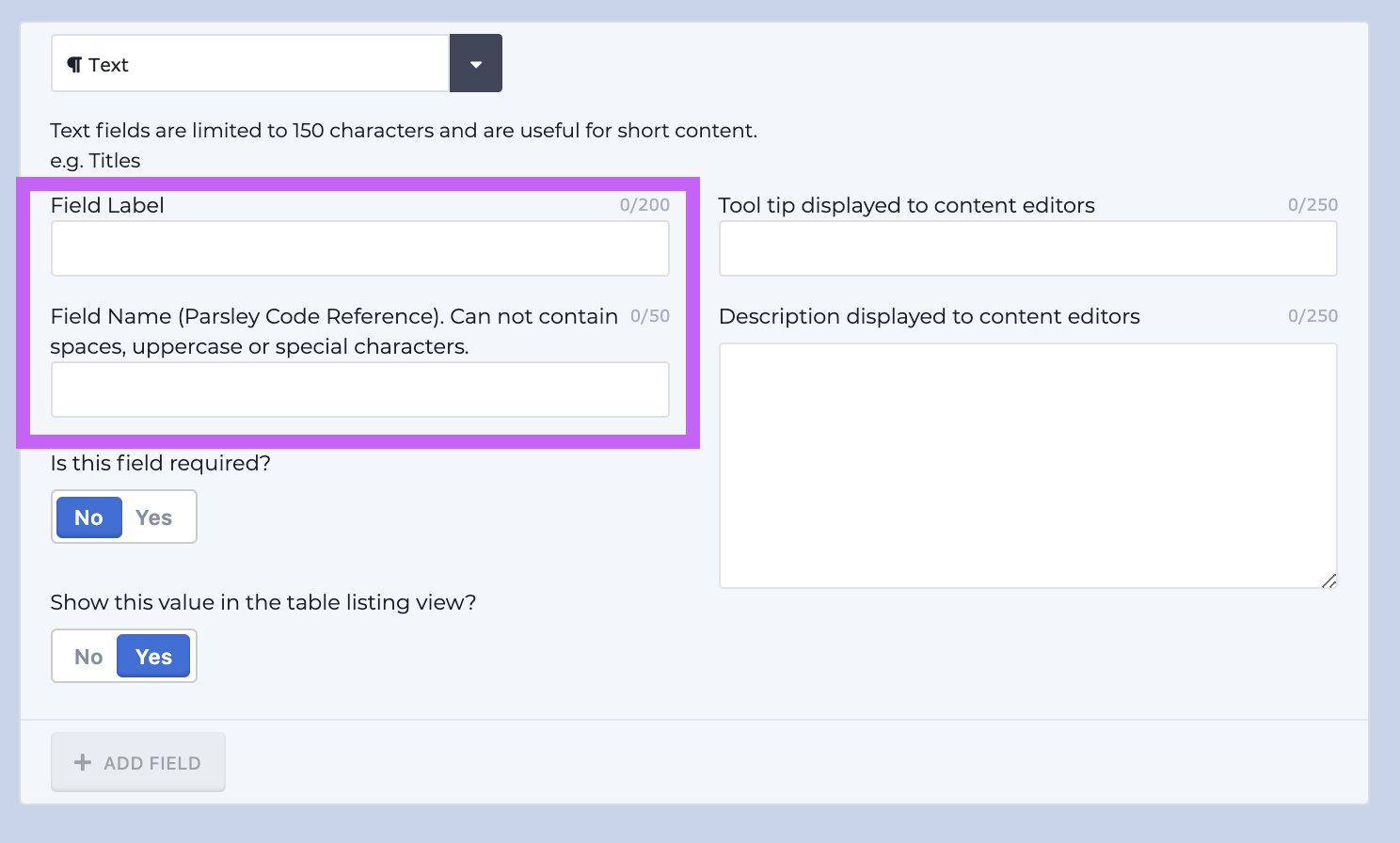

Field Label and Field Name
Field Label and Field Name
Give your field a Field Label and Field Name.The Field Label will be displayed in the Content section when you're adding content. The Field Name will be used to identify a content model's field in the Editor. The Field Name will auto-populate based on the Field Label's text.
Is this field required?
Required field toggle
If this toggle is flipped to Yes then an asterisk will appear next to the Field Label in the Content section. This field will be required to have content in it prior to saving and publishing in the Content section.
Show this value in the table listing view?
Tool tip and description
Tool tip and description attribute.
The Tool tip and Description attributes are used to direct your content editors when they're entering content. For example, if you have a text area and you want to limit its content to 3 sentences you can instruct your content editors to limit the content to 3 sentences.
Add Field button
Once you're finished filling out the attributes click the green + ADD FIELD button to add the field to your content model.
Repeat this process to add more fields to your content models.
Once you've completed this process with all of your content models hop on over to the Content section to enter your content.
If you need to create more content models and add more fields in the future simply navigate back to the Schema tab and create more content models and add fields.
